B-TRAN® simplifies bidirectional switching architectures by replacing up to four conventional power semiconductor devices, enabling lower conduction losses, improved power efficiency and power density.

Unlike traditional mechanical breakers, SSCBs using B-TRAN® can interrupt fault currents up to 1000x faster, eliminating arcing and reducing wear.

With ultra-low conduction losses and inherent bidirectional operation, B-TRAN® simplifies system design while improving reliability and performance. Compared to conventional semiconductor solutions such as IGBTs and SiC MOSFETs, B-TRAN® delivers significantly lower losses and supports compact, thermally efficient designs.



B-TRAN® architecture has 3 compelling advantages

  • Bidirectional blocking in a single device
  • Bidirectional conduction in a single device
  • Ultra-low conduction losses
Specifications

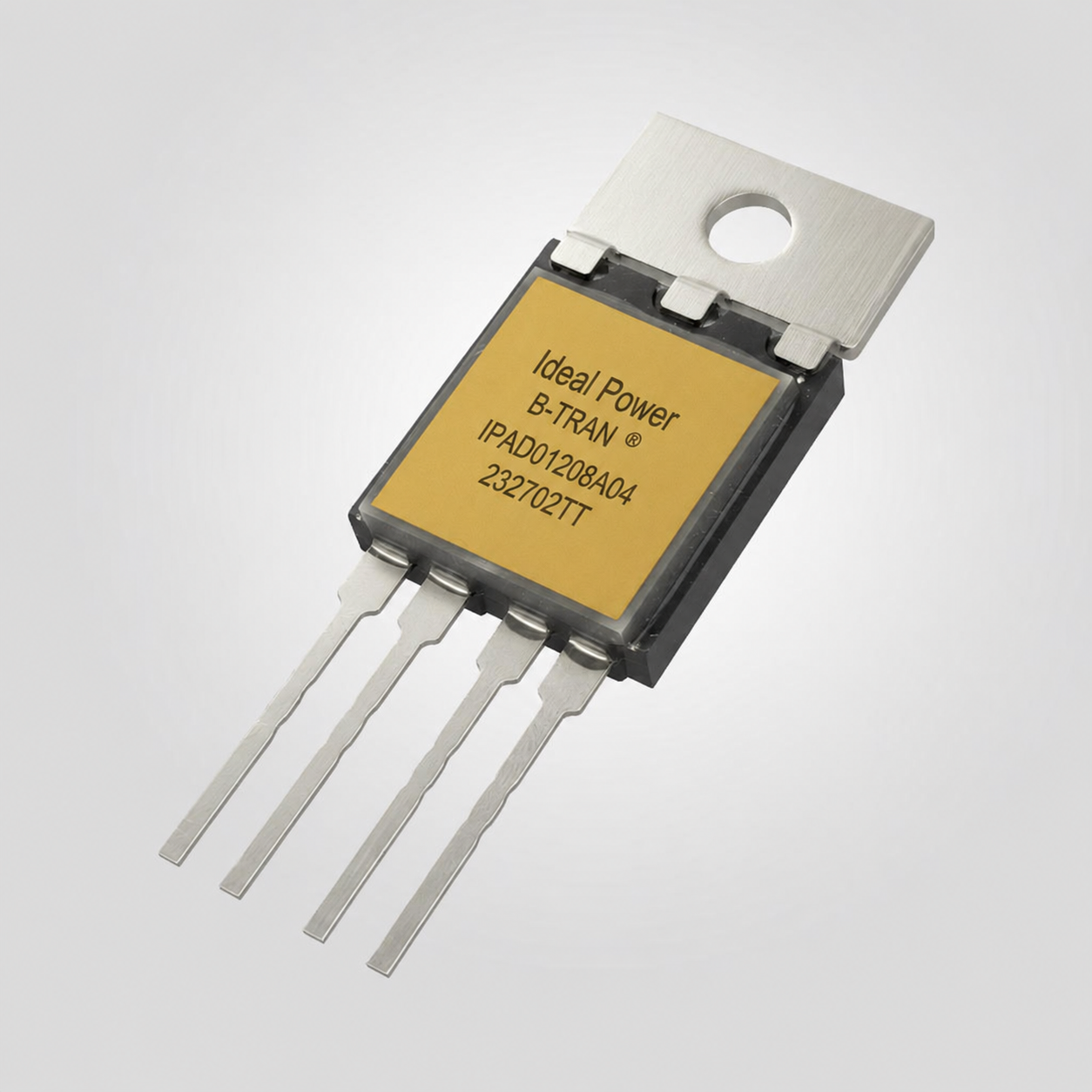

B-TRAN® 1200V / 75A (IPAD01208A04)

Key Electrical Ratings

  • Blocking Voltage: 1200 V
  • Continuous Current: up to 100 A (25°C), 80 A (100°C)
  • Pulsed Current: 300 A
  • Junction Temperature: -55°C to 150°C
  • Short Circuit Withstand: 10 µs

Performance Highlights

  • Ultra-low on-state voltage (~0.4V at 50A typical)
  • Bidirectional switching capability
  • Positive temperature coefficient (easy paralleling)
  • Low parasitic inductance/capacitance

Package & Thermal

  • Double-sided cooled TO-264 package
  • Thermal resistance: ~0.10–0.12 K/W
  • Power dissipation up to 2500 W (25°C, double-sided cooling)

B-TRAN® enables solid-state circuit breaker architectures with microsecond-scale fault interruption, arc-free operation, improved system protection and energy efficiency for modern AC and DC power systems.

Enable ultra-fast fault protection with significantly lower losses and simplified system design. B-TRAN® replaces multiple components while improving efficiency and reliability in modern power distribution systems.

  • Fast fault isolation to reduce fault energy and equipment stress
  • Arc-free interruption eliminates contact wear and maintenance associated with mechanical breakers
  • Advanced protection and intelligent power distribution architectures with native bidirectional switching
  • Improved energy efficiency and system reliability through solid-state operation and low conduction losses

B-TRAN® supports high-availability power systems through fast source transfer, reduced energy losses, and simplified solid-state transfer switch architectures.

  • Fast source transfer for critical load protection
  • True bidirectional switching simplifies power path design
  • Reduced conduction losses improve system energy efficiency
  • Enables compact and reliable solid-state transfer switch implementations

B-TRAN® enables solid-state contactor and battery disconnect architectures that improve reliability, eliminate contact wear and arcing, and support fast fault isolation and enhanced system protection.

  • Solid-state alternative to conventional contactors and battery disconnect units
  • Eliminates contact wear and arcing for improved reliability and reduced maintenance
  • Supports fast fault isolation protection and control strategies
  • Lower conduction losses can reduce thermal management requirements

B-TRAN® enables solid-state battery disconnect, protection, and power distribution architectures for electric vehicles and charging infrastructure with improved reliability, reduced energy losses, and simplified system designs.

  • Supports solid-state battery disconnect and contactor applications
  • Eliminates contact wear and arcing associated with mechanical switching devices
  • Reduces conduction losses compared to conventional semiconductor-based solutions
  • Enables compact, thermally efficient high-voltage power distribution architectures

Application Notes

Using B-TRAN® in Solid-State Circuit Breaker Design
