SymCool®

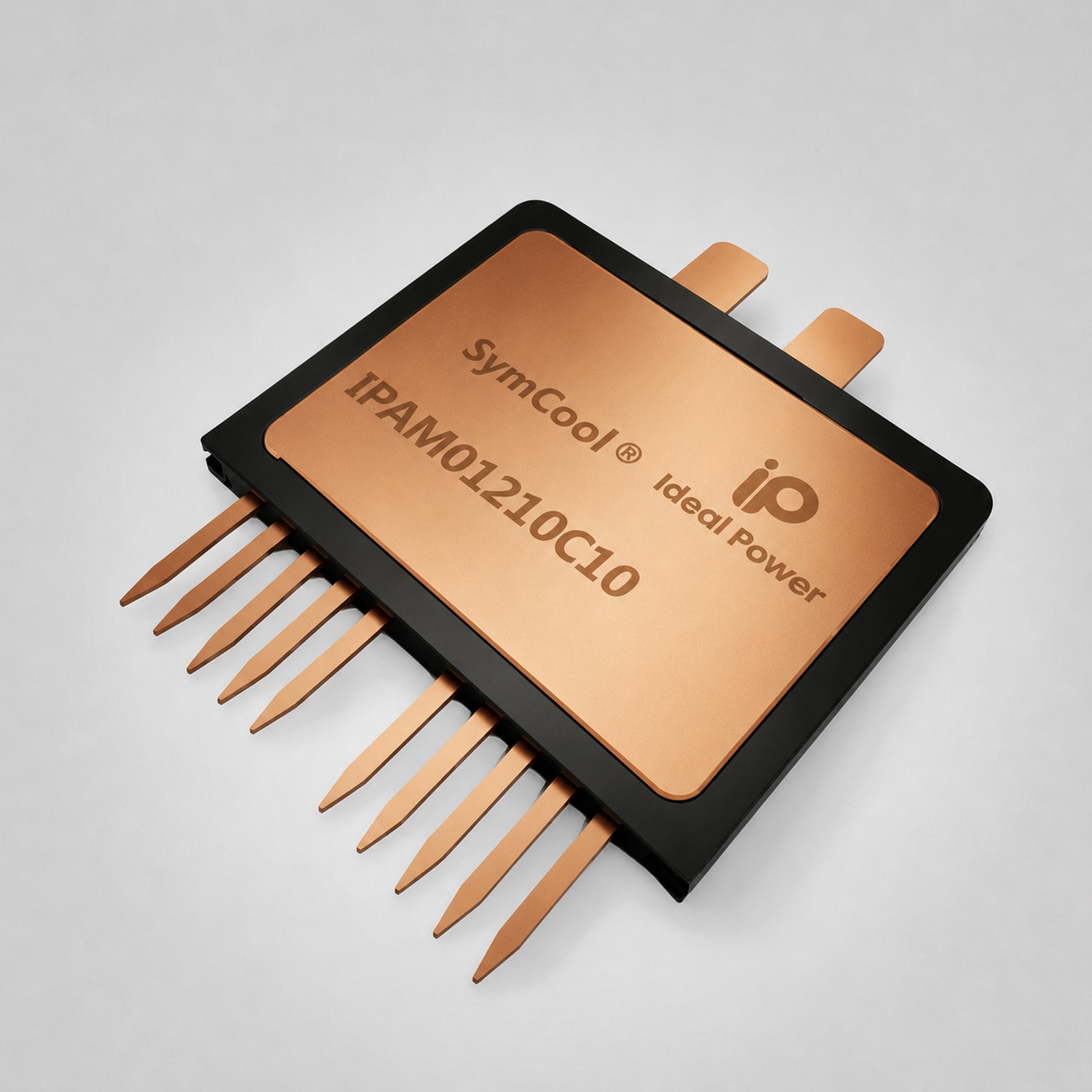

SymCool® is Ideal Power’s Double-Side Cooled (DSC) multi-die module solution designed to maximize the performance of B-TRAN® technology in high-current applications.

Designed for high efficiency and superior thermal performance, it delivers ultra-low conduction losses, high current capability, and compact integration.
With low parasitics and a robust package design, SymCool® enables simplified systems architecture, improved power density and reliability in high-power applications.



Key Features

  • Bidirectional switching capability in a compact, high current package
  • Double-sided cooling for high power density
  • Low parasitic inductance and capacitance

SymCool® V2 Power Module – 1200V / 200A

  • Voltage Rating: 1200 V
  • Continuous Current: 200 A (400 A pulsed)
  • On-State Voltage: ~0.6–0.72 V
  • Leakage Current: ~5 µA @ 1200 V
  • Operating Temperature: -40°C to +150°C
  • Thermal Resistance (J-C): ~0.04 K/W
  • Isolation Voltage: 4.2 kV

SymCool® delivers efficient bidirectional switching with ultra-low losses and advanced thermal performance. Explore its key benefits, applications, and design considerations.

  • Higher current capability through double-sided cooling
  • Lower thermal resistance and improved heat removal
  • Increased power density and reduced cooling requirements
  • Improved system efficiency through lower conduction losses
  • Compact packaging for high-current applications

  • Solid-State Circuit Breakers (SSCB)
  • Solid-State Contactors and Battery Disconnect Units (BDU)
  • Data Center Power Protection Systems
  • Energy Storage Protection and Disconnect Systems
  • Static Transfer Switches (STS)
  • High-Current Power Distribution Systems

  • Double-sided cooling requirements
  • Thermal interface material recommendations
  • Current sharing and paralleling considerations
  • Busbar integration guidelines
  • Driver and protection requirements
